Product Details

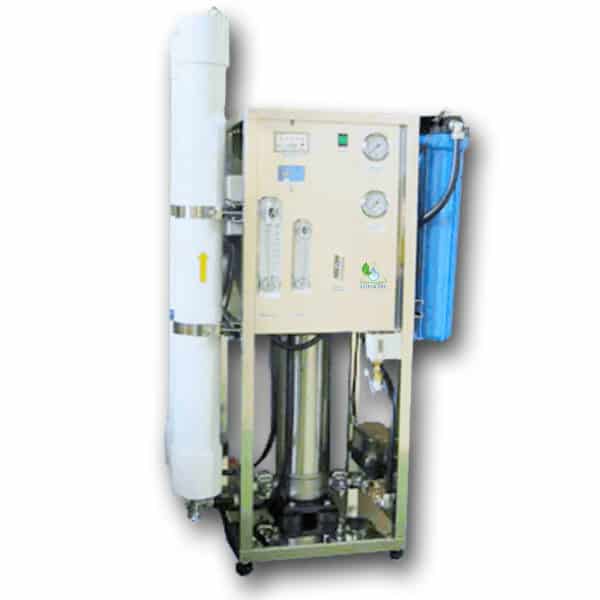

3000 upto 4000 GPD RO System
A commercial Reverse Osmosis system was supplied to a major company in GCC and African Countries. From its initial start-up, the machine has been working properly with minimal troubleshooting. A quality reverse osmosis machine is designed to deliver high-quality service by removing massive amounts of salt and other impurities from wells, lakes, rivers, and the ocean through a process called ‘reverse osmosis”.
Description
The process of reverse osmosis deals with the use of a high-pressure pump that applies extreme pressure to the high saline concentrated side of a semi-porous membrane, combating a natural process called “Osmosis”. Naturally, osmosis transports salt through a semi-porous membrane from a region with a low saline concentration to a region with a high saline concentration. Its goal is to gain an equal quantity of saline concentration on both sides of the membrane. With the use of the high-pressure pump, reverse osmosis comes into direct osmosis in the opposite direction. The pump applies high pressure to the highly concentrated saline side of the membrane, pushing salty water and other impurities across the membrane, only allowing water molecules to flow through. Salt and the impurities are rejected and later thrown into the drain on the concentrate side. In the end, we obtain purified water with 99% less dissolved salts on the permeate side of the membrane.
S.steel frame (Control box-Option)
20″ Pre-filters x 3
S.steel or Fiber Glass Membrane vessel
4″ x 40″ membrane*2
Inlet Actuator & Flush Solenoid Valve
Source & RO Gauge
Inlet & Concentration Flow meter
S.steel Vertical Pump 1.1kW
(single-phase motor)
Auto Flush Controller & TDS detector
Pressure Regulator
Gate Valve
Anti-scaling device*1
Additional information
| Weight | 98 kg |
|---|---|
| Dimensions | 70 × 60 × 150 in |
| Electricity consumption: | 1120W |
