Stainless Steel Cluster Filter

Description

Flange in/outlet available
Housing Material: SS304, or SS316 on request.
The entire set of filter cartridges is removed at one time for cleaning replacement.
Working Temperature: 1~50°C

FEATURES:

• Combination cyclone separator and cartridge filter in a single compact design
• Patented Up-flow design with tangential entry – prevents air entrapment
• Rotational flow “flutters” media pleats – improving loading performance
• Electropolished 304 stainless steel housing
• Fail-Safe lid closure, rated for 150 psi
• CPVC standpipe (standard) – stainless steel optional
• Three sizes for greater media surface area
• Extensive choice of cartridge micron ratings and media, including carbon block

APPLICATIONS:

• Commercial/Residential Drinking Water
• Industrial Waste Water Treatment
• Surface Water Treatment Rule (SWTR) LT2
• Process Water Cooling Tower Filtration
• Whole House Filtration
• Reverse Osmosis Pre-filtration
• Desalination Pre-filtration (316 and coated options)
• Ground Water Remediation
• Ground Water Under Direct Influence (GUDI)
• Well Water
• Small Community Compliance LT2

FILTER SPECIFICATIONS:

• Electropolished 304 stainless steel
• Standpipe – CPVC (standard)
• Temperature – 140˚F (60˚C) max. Up to 250˚F (121˚C) with optional stainless steel standpipe and high-temperature cartridges installed
• Wing nuts – brass
• Rim gaskets – EPDM (Buna-N, Viton available)
• BSTP optional
• Gauge sample ports (1/4”), inlet, and outlet
• Pressure – 150 psi (10 bar) max.

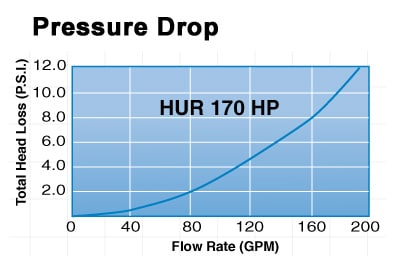

• Manufacturers’ Part Number – HUR-170-HP or HUR-170 HP

OPTIONS:

• Stainless Steel Stand Pipe For High Temperature
• 316 Stainless Steel
• 3M Scotchkote 134 Fusion-Bonded Epoxy Coating (specifically for sea water and chemical compatibility)

DIMENSIONS:

• A – Filter Height:  40-1/2″
• B – Width:  14-3/8″
• C – Diameter:  13″
• D – Inlet:  23-5/8″
• E – Outlet:  3-7/16″
• Pipe Size:  2″ NPT
• Drain Size:  1″ NPT
• Floor Space:  15″ x 15″
• Service Height:  35″
