Product Details

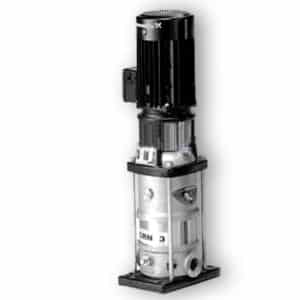

Water Filters Dubai UAE Grundfos-3-4HP-vertical-600x600

Grundfos 2HP 238 Max PSI Vertical Multistage Centrifugal Pump w/RO

CR pumps are suitable for a variety of applications from pumping of potable water to pumping of chemicals. The pumps are therefore used in a wide variety of pumping systems where the performance and material of the pump meet specific demands.

Categories: ,

Share this product

Description

CRN1-19
2 HP 238 psi(max) EPDM O-ring

316 Stainless Steel, Victaulic Type, 1-1/4

Suitable for flow rate 6.0-8.0 gpm, around 203.4 psi

CR pumps are suitable for a variety of applications from pumping of potable water to pumping of chemicals. The pumps are therefore used in a wide variety of pumping systems where the performance and material of the pump meet specific demands.

The CR pumps consist of two main components: the motor and the pump unit. The motor on a CR pump is a heavy-duty Grundfos specified motor.The pump unit consists of optimized hydraulics, various types of connections, an outer sleeve, a top and various other parts.

The in-line design enables the pump to be installed in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimensions. This design provides a more compact pump design and pipework. Grundfos CR pumps come with various pump sizes and various numbers of stages to provide the flow and the pressure required.

Additional information

Weight 43 kg
Dimensions

( refer to the image above )

Details

2 Horse Power
Seal Type: EPDM
3 Phase, 208-230/460 Voltage
NEMA Frame size: 56C
Oval B1: 22-1/2

TEFC Motors
D1: 7-1/4
D2: 5-3/4
Oval B1+B2: 35-1/8
