Product Details

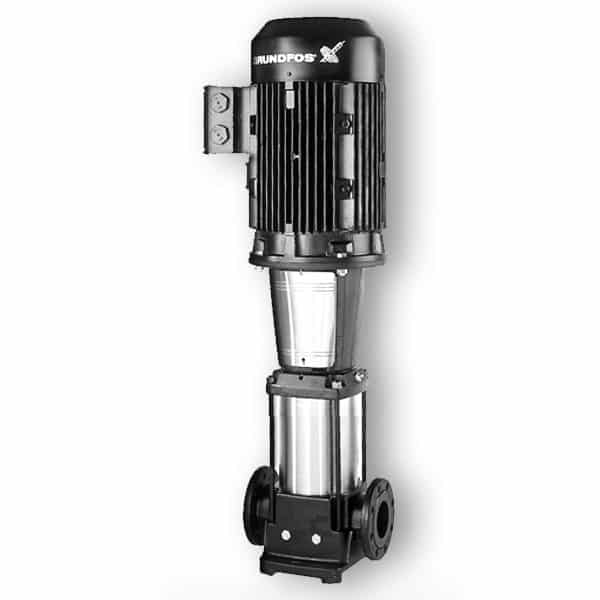

Water Filters Dubai UAE Grundfos-0-310GPM-600x600

Grundfos 0-310GPM 15HP 82Max-PSI, ANSI-Flanges Multi Centrf Pump

CR pumps are suitable for a variety of applications from pumping of potable water to pumping of chemicals. The pumps are therefore used in a wide variety of pumping systems where the performance and material of the pump meet specific demands.

Categories: ,

Share this product

Description

MODEL#: CR45-2-2
Cast Iron/304 Stainless Steel, ANSI Flanged (3 NPT, 125/250 lb)

Most efficient at flow rate from 115 gpm to 310 gpm
and pressure from 35 psi to 82 psi (approximate numbers).

CR pumps are suitable for a variety of applications from pumping of potable water to pumping of chemicals. The pumps are therefore used in a wide variety of pumping systems where the performance and material of the pump meet specific demands.

The CR pumps consist of two main components: the motor and the pump unit. The motor on a CR pump is heavy-duty Grundfos specified motor.The pump unit consists of optimized hydraulics, various types of connections, an outer sleeve, a top and various other parts.

The in-line design enables the pump to reinstalled in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimensions. This design provides a more compact pump design and pipework. Grundfos CR pumps come with various pump sizes and various numbers of stages to provide the flow and the pressure required.

Additional information

Weight 175 kg
DIMENSIONS

( refer to the image above )

SPECIFICATIONS

15 Horse Power
Shaft Seal Type: EPDM
3 Phase, 208-230/460 Voltage
NEMA Frame size: 254TC
ANSI B1: 29-1/2

*TEFC Motors
D1: 10-3/8
D2: 8-3/4
ANSI B1+B2: 46-1/8
